Anglia 105E & 123E

Old Ford Auto Services

Anglia 105E & 123E
Anglia 105E & 123E 25th February 2017

Fibreglass Panels

  • Front Wings - each ............................... 120.00
  • Bonnet with Internals ............................ 145.00
  • Bonnet Skin ....................................... 77.00
  • Bootlid with Internals ............................ 99.00
  • Bootlid Skin ...................................... 86.00
  • Doors each ....................................... 164.00
  • Rear Valance ...................................... 38.00
  • Fibreglass Bumpers - each ......................... 50.00
  • Dash top with Gauge Pod 1600E needs prep. & paint . 48.00
  • Full Period 60`s Style Dashboard (smooth black gel) 78.00
  • Headlamp Bezels - pair ............................ 35.00
  • Front Panel Skin (cosmetic only not structural) .. 101.00
  • External Sun Visor Inc. fixing brackets .......... 121.00

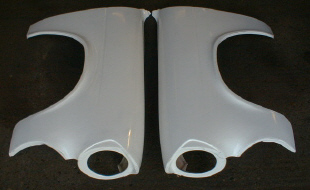

Anglia 105E & 123E. 105e wings


Polyurethane Suspension Bushes


  • SUPERFLEX Polyurethane Bushes.

  • 930 Inner T.C.A. Bushes ...................(car set)19.88
  • 930 Front Rollbar Mount Bushes ............(car set)19.88
  • 934K Leaf Spring Shackle Re-Bush Kit ...............30.60
  • 1165 Anti Rollbar To T.C.A. Bush ..........(car set)49.00
  • 1682 Leaf Spring Front Eye Bush Kit .......(car set)64.00






    Anglia 105E & 123E. new anglia dash panel 1

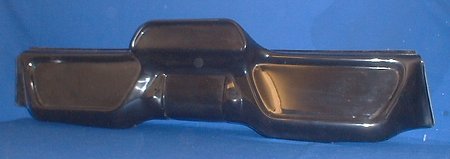

Anglia 105E & 123E. 105E dash

Miscellaneous Parts


  • Front Wheel Bearing Kit (one side) ................ 21.00
  • Rear Halfshaft Bearing Kit one side. early or late. 21.00
  • Clutch Release Bearing ............................ 24.00
  • 8 x Chrome Bumper Bolts inc. Washers & Nuts ....... 19.20
  • Universal Cut-to Length Throttle Cable & Adjuster.. 12.50
  • Speedo Cable 4/5 Speed Conversions Fits Orig.Speedo 29.50
  • Standard Engine Mounts ........................each 23.00
  • Heavy Duty Engine Mounts ......................pair 52.00
    (ideal for competition & fast road)
  • Diff Gaskets (genuine Ford) ........................6.50





    Clutch Pedal To Cable Conversion Parts

  • Clutch Pedal Converted To Take Cable (exchange) ... 44.00
  • (non exchange surcharge 37.00)
  • Bulkhead Fitting For Cable ........................ 33.00
  • Clutch Cable With Fitted Heat Shield .............. 34.00





Anglia 105E & 123E. bumper bolts & 5 speed cable

Front Suspension/Steering Conversion Kit

  • BASE KIT.899.00.

    • Modified Mk.2 Escort XMember ...................... 95.00
      (Non Exchange Escort Xmember Surcharge 70.00)
    • New Modified Mk.2 Escort Steering Rack ............ 87.00
    • Superflex Steering Rack Mounts .................... 16.00
    • Steering Rack Mounting Brackets (pair) ............ 21.00
    • New Adjustable Track Control Arms ................ 185.00
    • Modified 105E Anti-Roll Bar ....................... 69.00
      (Non Exchange Roll bar Surcharge 60.00)
    • Superflex Re-bush Kit ............................. 84.00
    • steering Column Coupling .......................... 69.00
    • Rose Jointed Top Mountings ....................... 140.00
    • 21/4 Adjustable Spring Seat Kit ................... 73.00
    • 21/4 Springs ...................................... 52.00
    • 'C' Spanner ....................................... 8.00


    • Parts For Use With The Above Kit

    • Modified Anglia Steering Column
      for use with the above kit - Exchange ............. 83.00
      (Surcharge 60.00)
    • New RS Alloy Engine Mounts ..................(pair) 48.00
    • 50mm round Rubber Mounts for the RS Mounts ..(each) 16.00
    • Replica Mexico Steel Engine Mounts ..........(pair) 44.00
    • 38mm round Rubber Mounts (stud top & bottom) (each) 16.00
    • Replacement T.C.A. Ball Joint (each) .............. 20.50


    • The Above Kit is Fully Adjustable for Camber & Castor Angles &
      Adjustable for Suspension Ride Height, it will also move the
      XFlow & Pinto Engines closer to the Bulkhead using Standard
      Escort Engine Mounts which will mean some Bulkhead Modifications
      will be needed & the loss of the standard heater assembly.








    Anglia 105E & 123E. NEWAFRAMEKIT105E

    Rear Suspension

  • 'A' FRAME AXLE LOCATING KIT
  • Rose Jointed & Bushed (Fast Road Cars) .............. 232.00

  • Axle "U" Bolts (longer than standard cut to length)set 23.00
  • Rear Axle lowering Block Kit -1 inch ................. 29.00
  • Rear Axle lowering Block Kit -11/2 inch .............. 29.00
  • Rear Axle lowering Block Kit -2 inch ................. 29.00






  • Brake & Clutch Parts


  • Brake/Clutch Master Cylinders (standard replacement)... 53.50
  • Brake Master Cylinder (disc brake conversion).......... 67.50
  • Rear Wheel Cylinder Retaining Clips (car set)........... 7.50
  • Clutch Release Bearing ................................ 24.00

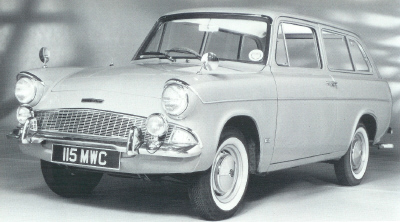

    Anglia 105E & 123E. 105E estate


  • Front Disc Brake Conversion (standard struts)

  • KIT CONSISTS OF:
  • 2x Brake Discs (solid type)
  • 2x Brake Caliper Mounting Brackets
  • 2x Braded Flexi Brake Hoses
  • 8x Wheel Studs
  • Modified Anglia Hubs(Customer to supply own units)
    KIT PRICE ................................................. 209.00

  • Parts For Use With The Above KIT

  • Larger bore brake master cylinder disc brake conversion.. 67.50
  • Front Wheel Bearing Kits (each)........................... 21.00

    This Kit is Designed To Use Ford KA (1996-07) Brake Calipers & Carriers Solid Disc Type.


  • Rear Disc Brake Conversion

  • OP1 KIT CONSISTS OF:
  • 2x Caliper Mounting Brackets
  • 2x Half Shaft Spacers
  • Handbrake Brackets
  • 8x Wheel Studs...............................KIT PRICE 152.00

  • OP2 KIT: As Above Kit + 2 x Brake Discs & Handbrake Cable
  • OP2 KIT................................................212.00

  • Machining Service for Halfshaft Flange............(pair)29.00

    we need to know if your halfshafts are held-in by bolts or stud & nuts
    you will need to have halfshaft flange machined to fit disc.




    All The Above Prices Include V.A.T.

    Anglia 105E & 123E. rear disc brake conversion
